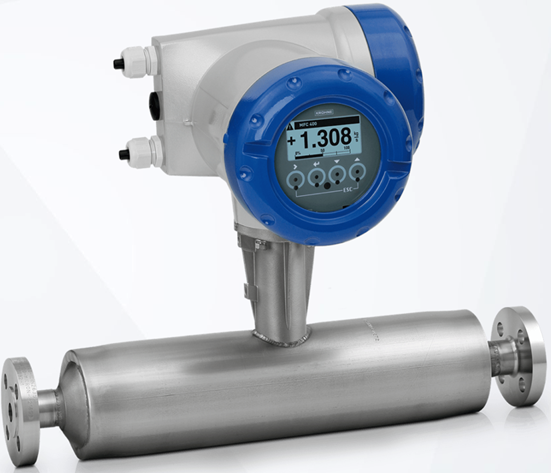

Krohne Optimass 1400 Straight Tube Coriolis Meter
Introducing the OPTIMASS 1400: Your Ultimate Coriolis Mass Flowmeter Solution
- The OPTIMASS 1400 is a budget-friendly twin straight tube Coriolis mass flowmeter ideal for a wide array of standard applications, accommodating gases and liquids with a flow rate capacity of up to 170,000 kg/h or 6,235 lb/min.
- Featuring Entrained Gas Management (EGM™) technology, this meter ensures accurate readings even in scenarios of liquid applications with up to 100% gas entrainment.
- Experience seamless and uninterrupted volume flow and mass measurement, along with density and temperature readings, even under challenging process conditions involving 2-phase flow.
FEAUTURES
Optimass 1400 is ideal for aggressive mass flow measurement applications:
- Twin straight tube design
- Entrained Gas Management (EGMTM): No loss of measurement with gas entrainment in liquid applications
- Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft)
- Fast and completely digital signal processing
- Best-in-class price/performance ratio
- High accuracy mass, density and volume flow measurement (±0.15% of MV)
- Extensive sensor and process diagnostics (incl. NE 107)
- Integrated temperature measurement
- Optimised flow splitter for low pressure loss
- Optional PED approved secondary pressure containment up to 100 barg / 1450 psig
- Optional insulation, heating jacket or purge ports
- Immunity to crosstalk: resistant to installation and process effects
- On-site verification of flowmeter with OPTICHECK service tool
TECHNICAL DESIGN
The OPTIMASS 1400 is equipped with an optimized flow splitter to minimize pressure loss and facilitates easy draining and cleaning. It supports various process connections including standard hygienic connections suitable for food and beverage applications. Installation flexibility is guaranteed, as the meter is immune to crosstalk/line vibrations, allowing for series or parallel installations. Additionally, it is approved for use in hazardous areas.
Enhanced diagnostics (NE 107) and multiple digital communication options including Modbus RS485 are available with the OPTIMASS 1400. Manage device settings effortlessly on-site through the secure Bluetooth® connection using the OPTICHECK Flow Mobile app, facilitating wireless commissioning tasks such as zero calibration and diagnostics configuration.
